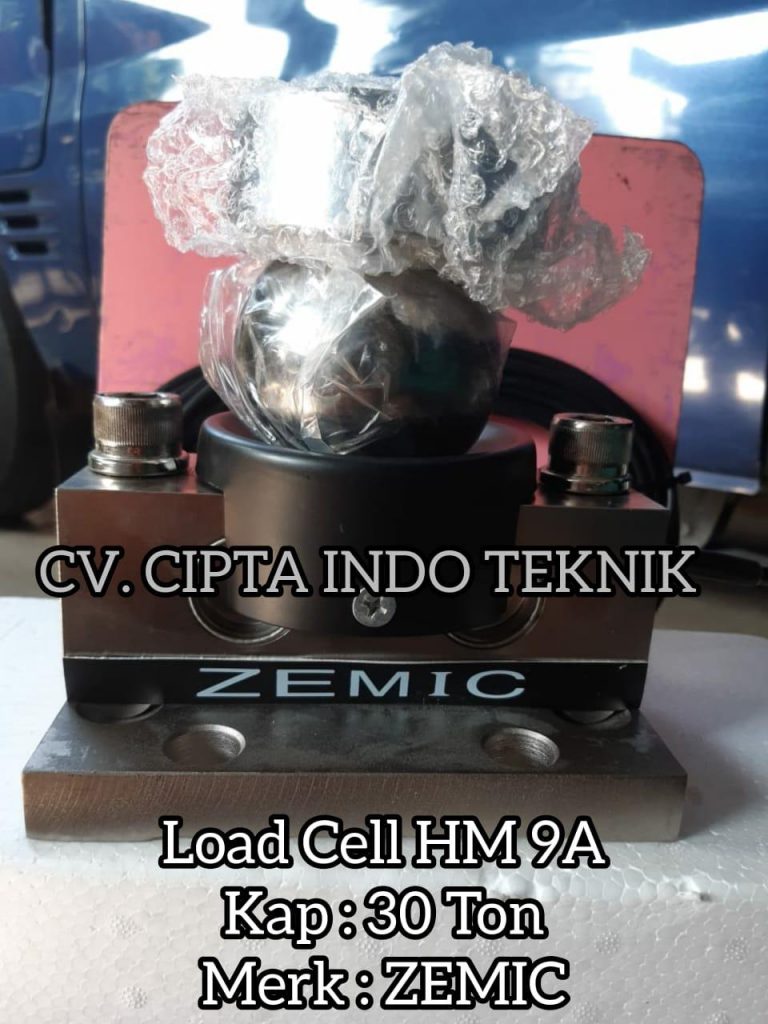

LOADCELL ZEMIC HM 9A – 30 TON
HM9A load cells are available in the capacities 10t to 50t, alloy steel construction, nickel plated, hermetically welded, oil-proof, waterproof and anti-corrosive gas and medium making it suitable for all kinds of environments. Dual shear beam, suitable for elctronic truck scales, railway scales and other elctronic weighing devices.
| Specifications | ||||||
| Capacity | t | 10/15/20/25/30/40/40SE/50 | ||||
| Accuracy | C1 | C2 | C3 | A5M | B10M | |
| Max number of verification intervals |
n max | 1000 | 2000 | 3000 | 5000 | 10000 |
| Mini number of verification intervals |
v min | Emax/3000 | Emax/5000 | Emax /10000 |
Emax /15000 |
Emax /10000 |
| Combined error | %FS | ≤ ±0.050 | ≤ ±0.030 | ≤ ±0.020 | ≤ ±0.026 | ≤ ±0.050 |
| Creep | %FS/30min | ≤ ±0.038 | ≤ ±0.024 | ≤ ±0.016 | ≤ ±0.017 | ≤ ±0.040 |
| Temperature effect on sensitivity |
%FS/10℃ | ≤ ±0.028 | ≤ ±0.017 | ≤ ±0.011 | ≤ ±0.013 | ≤ ±0.040 |
| Temperature effect on zero | %FS/10℃ | ≤ ±0.047 | ≤ ±0.023 | ≤ ±0.015 | ≤ ±0.014 | ≤ ±0.020 |
| Output sensitivity | mV/V | 2.0 ± 0.002 | ||||
| Input resistance | Ω | 700 ± 3.5 | ||||
| Output resistance | Ω | 703 ± 3.5 | ||||
| Insulation resistance | MΩ | ≥ 5000 (50VDC) | ||||
| Zero balance | %FS | 1.5 | ||||
| Temperature, compensated | ℃ | -10 ～ +40 | ||||
| Temperature, allowed | ℃ | -35 ～ +65 | ||||
| Excitation, Recommended | V | 5 ～ 12 (DC) | ||||
| Excitation, max | V | 18 (DC) | ||||
| Safe overload | %FS | 150 | ||||
| Ultimate overload | %FS | 300 | ||||
| Features | Accessories |
| Capacity : 10t – 50t | Button, steel ball, ball cup, base plate |
| High accuracy | |
| Alloy steel construction | |
| Easy installation, reliable performance |
