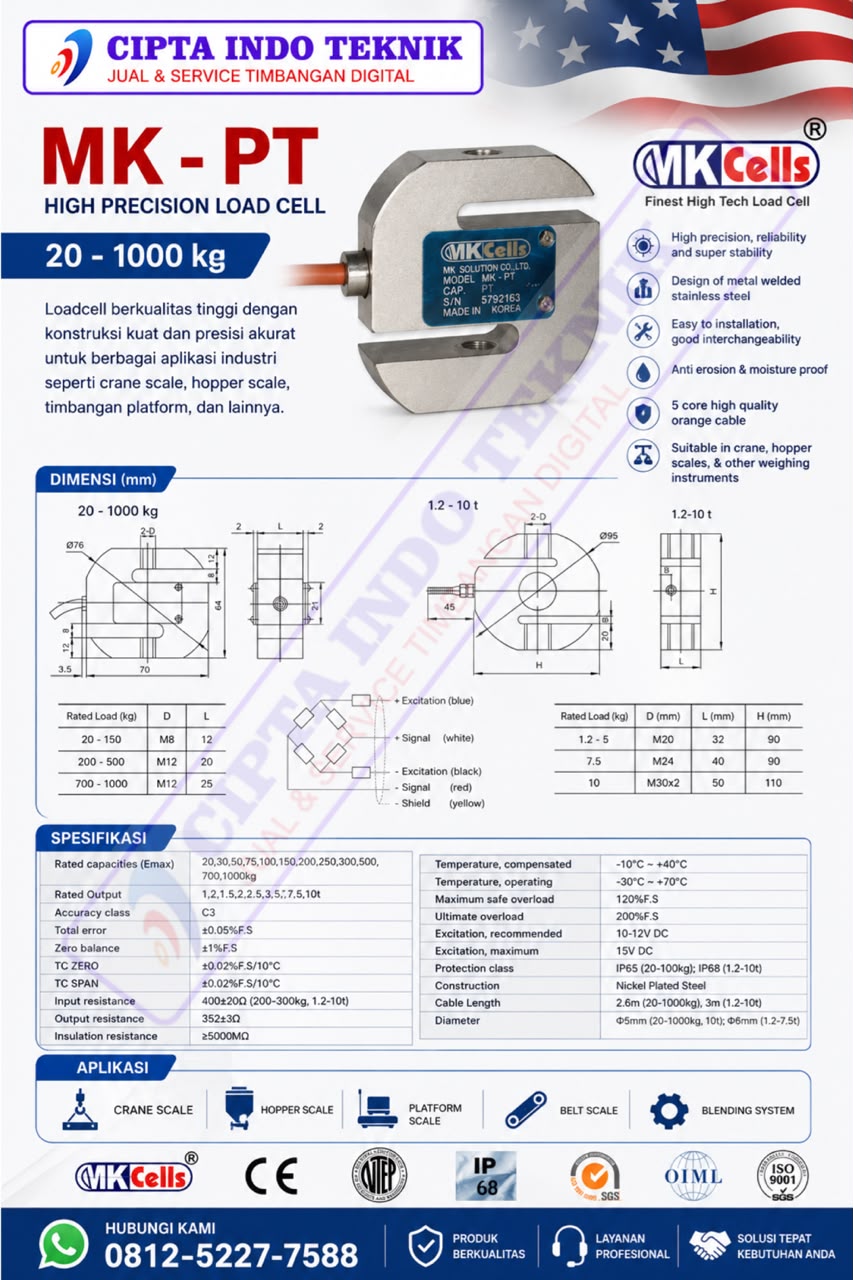

LOADCELL S TYPE MK – PT MERK MK – CELLS
| Specifications | |||
| Rated Capacities (Emax) | 20, 30, 50, 75, 100, 150, 200, 250, 300, 500, 700, 100kg, 1.2, 1.5, 2, 2.5, 3.5, 7.5, 10t | Temperature, Compensated | -10°C ~ +40°C |
| Rated Output | 2.0 ± 0.003mV/V (20kg-7.5t), 1.8 ± 0.002mV/V (10t) | Temperature, Operating | -30°C ~ +70°C |
| Accuracy Class | C3 | Maximum Safe Overload | 120% FS |
| Total Error | ± 0.05% FS | Ultimate Overload | 200% FS |
| Zero Balance | ± 1% FS | Excitation, Recommended | 10 ~ 12V DC |
| TC Zero | ± 0.02% FS/10°C | Excitation, Maximum | 15V DC |
| TC Span | ± 0.02% FS/10°C | Protection Class | 1P65 (20-100kg), IP68 (1.2-10t) |
| Input Resistance | 400 ± 20Ω (200-300kg, 1.2-10t) | Contruction | Nickel plated steel |
| Output Resistance | 352 ± 3Ω | Cable | Length : 2.6m (20-100kg), 3m (1.2-10t) |
| Insulation Resistance | ≤ 5000MΩ | Diameter : Φ 5mm (20-100kg, 10t), Φ 6mm (1.2-7.5t) | |
| Features | |
| High precision, reliability and super stability | Design of metal welded stainless steel |
| Easy to installation, good interchangeability | Constructed of excellent capability in anti erosion, moisture proof |
| 5 core high quality orange cable | Suitable in crane, hopper scales, and other special weighing instrument |
