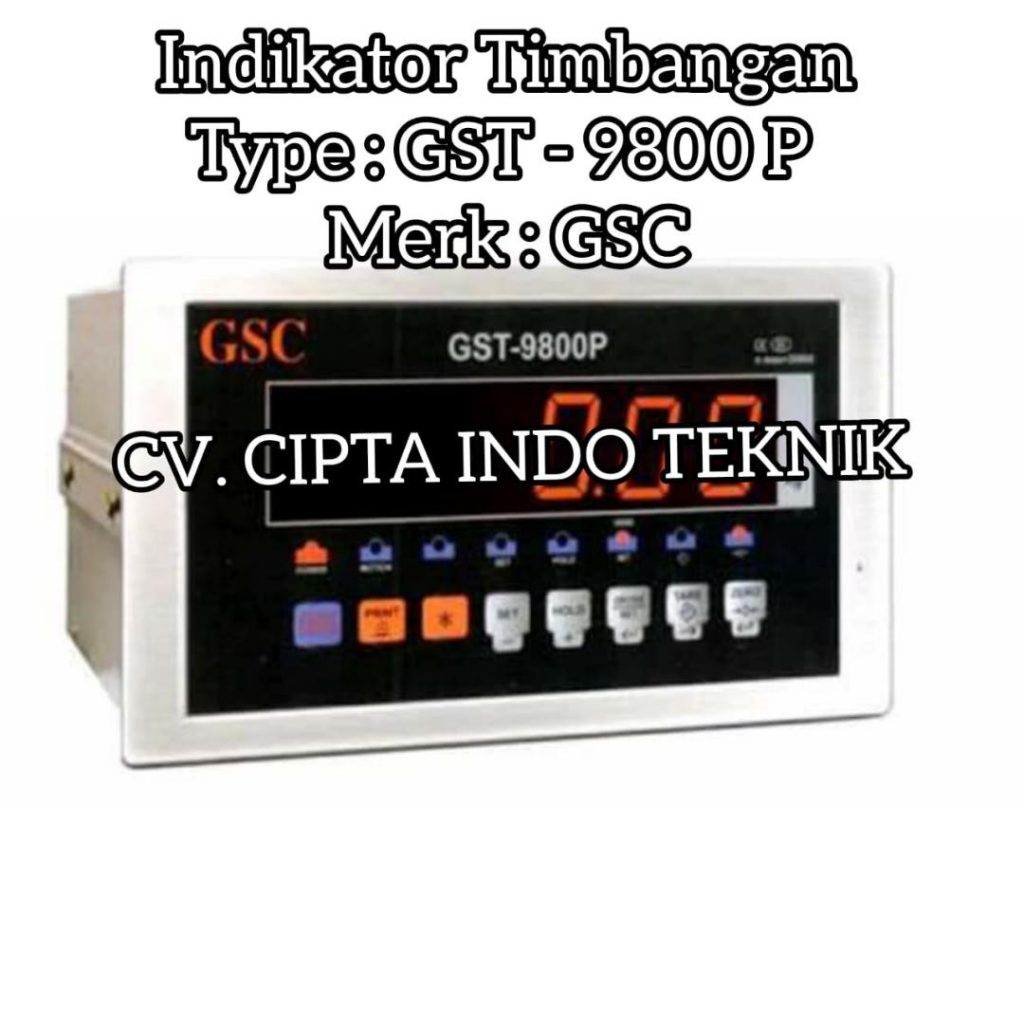

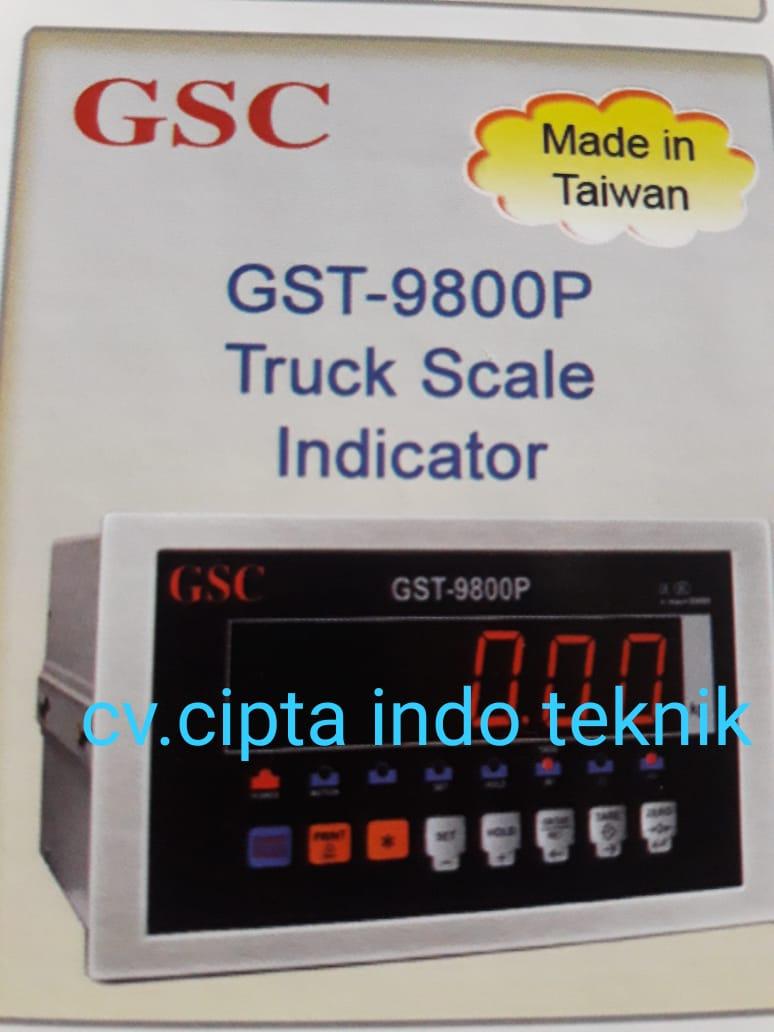

High performance digital weighing indicator offering advanced, flexible functions

• Selectable display resolution
  A high 1/500,000 count internal resolution, and a selectable display resolution delivers precision for the most demanding application.
• Divers up to 8 load cell
  Load cell excitation voltage of 12 VDC with the capability of driving up to 8 load
  cell (350 ) in parallel.
• Standard RS-232 interface
  Serial interfaces available to connect computers, printers or external display.
• GST-9800PLUS with 4 input set points
  The high 40 times/sec sampling speed makes the GST-9800PLUS’ s two batching operation modes. Normal or check weighing batching perfect for demanding batch weighing application.
• Digital linearization
  The GST-9800, GST-9800P and GST-9800PLUS can improve the performance of load cells with poor linearity. The digital linearization function provides compensation for load cells to improve their linearity.
• 304 stainless steel cover
  GST-9800P and GST-9800PLUS install 304 stainless steel case to protect board.

5 cm high red LED display

Hi-low OK comparison function

Full digital front panel calibration set up capacity and accuracy

GST-9800 coated steed cover with wall mount

Options:

• GST-9800Plus with 6 set point
• GST-9800P 304 stainless steel cover
• GST-9800 coated steel cover
