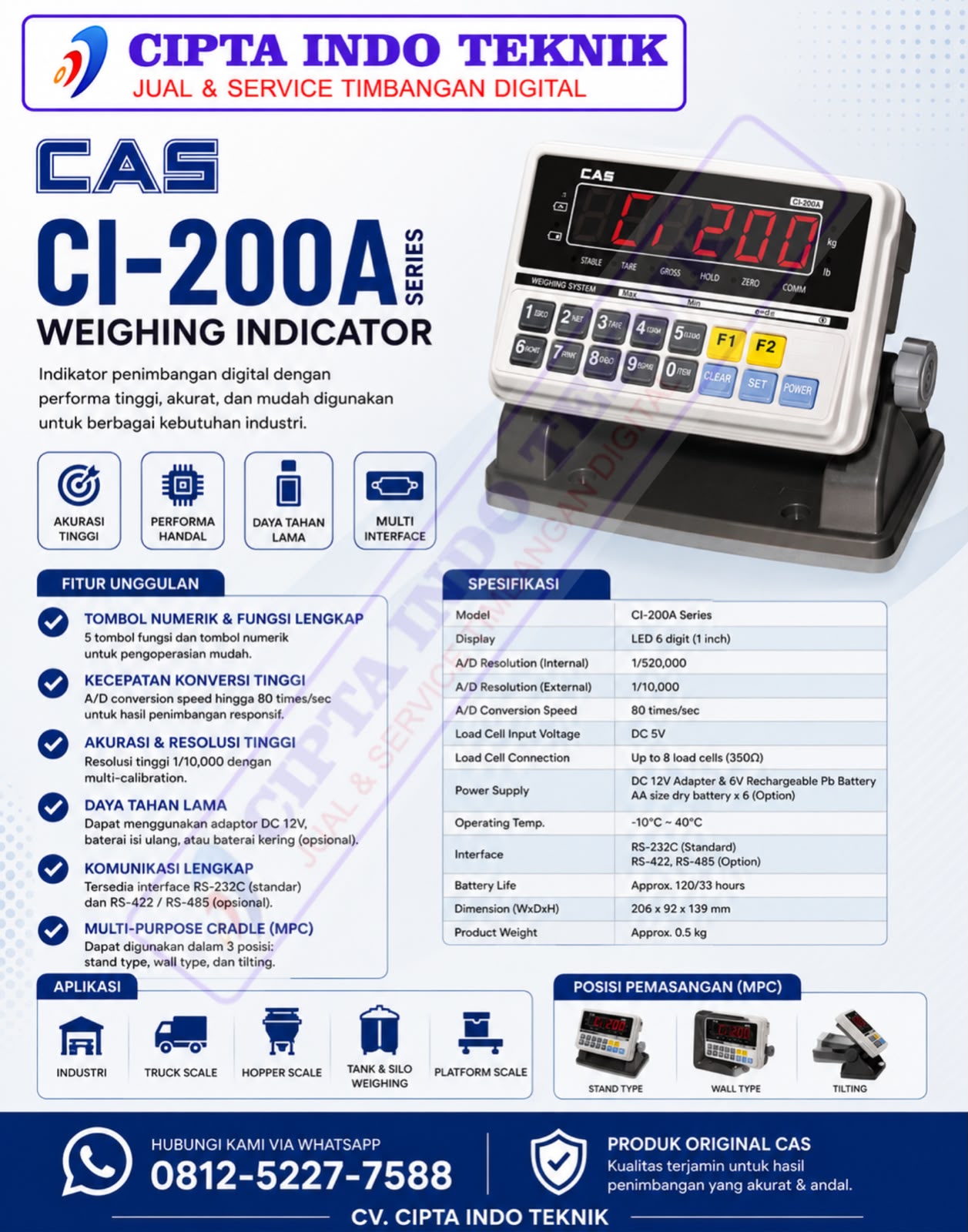

INDIKATOR CI – 200 A MERK CAS
Applicable for various weighing applications, with the added flexibility of manually setting functions via numeric keys.
With various power supply options, the CI-200A series is highly portable and ideal for environments where power outlets are not available or power outages often occur.
Specifications
| Model | CI-200A | |
| Load cell input voltage | DC 5V | |
| Load cell connection(350ohm) | 8 ea | |
| Zero calibration | 0~2 mV/V | |
| Input sensitivity | 0.5 μV/D | |
| A/D Internal resolution | 1/520,000 | |
| A/D External resolution | 1/10,000 | |
| A/D Conversion speed | 80 times/sec | |
| Battery life (※standby / continuous usage) | Approx. 120/33 hours | |
| Battery charging time | Approx.12 hours(for full recharge) | |
| Key | 10 numeric keys & 5 function keys | |
| Display | 6 Segment 1 inch LED | |
| Power | DC 12V Adaptor & 6V rechargeable Pb BatteryAA size dry battery x 6 ( Option ) | |
| Operating Temp. | -10˚C ~ 40˚C | |
| Dimension (WxDxH/mm) | 206 x 92 x 139 | |
| Product weight | Approx. 0.5 kg | |
| Interface | Standard | RS-232C |
| Option | RS-422, RS-485 | |
FEATURES
- Simple and prompt full digital calibration
- High A/D conversion speed (80 times/sec)
- High resolution 1/10,000
- Multi-calibration
- Weight back-up function
- Weight Comparison: Hi, Low, OK (only LCD)
- Numeric keys & function keys
- Various power supplies [DC adaptor, Rechargeable battery or AA size dry battery x 6 (option)]
- 4 & 6 wire load cell support
- 2 serial ports
– Standard: 1 port
– Option: 1 additional port (for PC, Printer, Remote display communication, etc) - Multi-purpose cradle
- Interface
– Standard: RS-232C
– Option: RS-422, RS-485
OPTIONS
- Pole bracket
- Dry battery holder
- 1 additional serial port
- Remote display
- Printer (DLP-50, DEP-50)
- RS-422/RS-485 Interface
