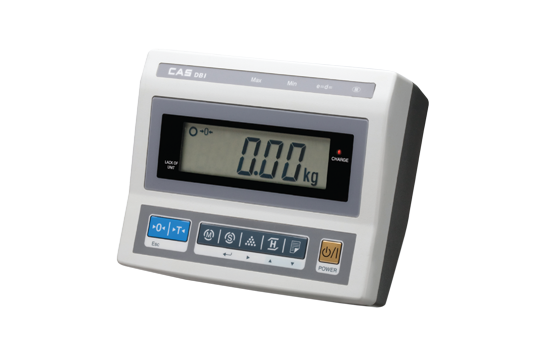

CAS DBI
Connectable with various sizes of weighing platform scales for versatile applications such as open markets and retail stores. DBI offers various convenient functions including counting, weight comparison and percentage functions at economic price.
- 3,000 division with OIML approval
- Ticket print-out (DEP-50)
- Calculation functions
- RS-232C interface
FEATURES
- 3,000 division under OIML
- Large LCD display with backlight (20mm)
- Wide application functions for bench & platform scales
- Counting & percentage mode
- Accumulation mode (Σ )
- Weight comparison (HI/LOW/OK)
- Ticket print-out (DEP-50)
- RS-232C interface
- Rechargeable battery (Approx.100 hours)
- Auto power off function
OPTIONS
- Stand bracket
- Wall bracket
- DEP-50 (Ticket printer)
SPECIFICATIONS
| Model | DBI |
| Input sensitivity | 1.25 V |
| Load cell connection | 1 Load cell of 350Ω |
| Load cell input voltage | DC 5V |
| Zero calibration | < 0.0 mV |
| A/D type | Sigma delta |
| A/D internal resolution | 1/60,000 |
| A/D external resolution | 1/3,000 |
| A/D conversion speed | 20 times/sec |
| Display | 25mm 6 digits LCD |
| Power | 12 VDC6V DC Pb battery |
| Dimensions(mm) | 278[W]x145[D]x187[H] |
| Product weight (kg) | 1.5 kg |
