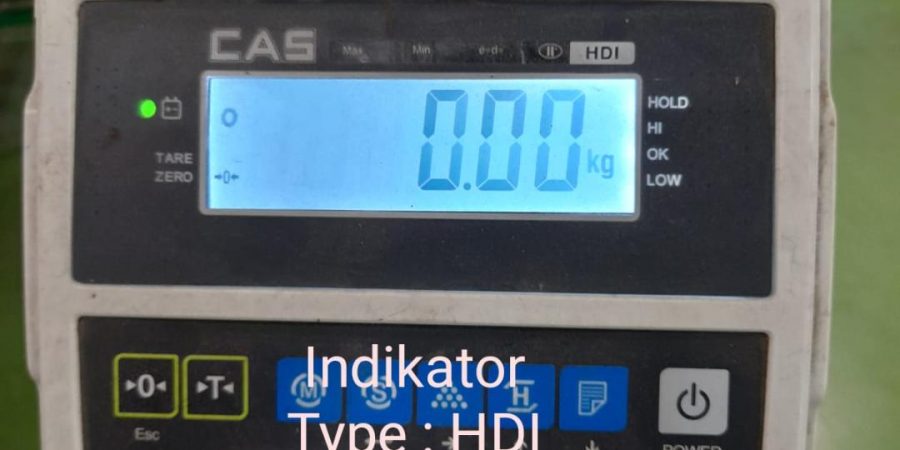

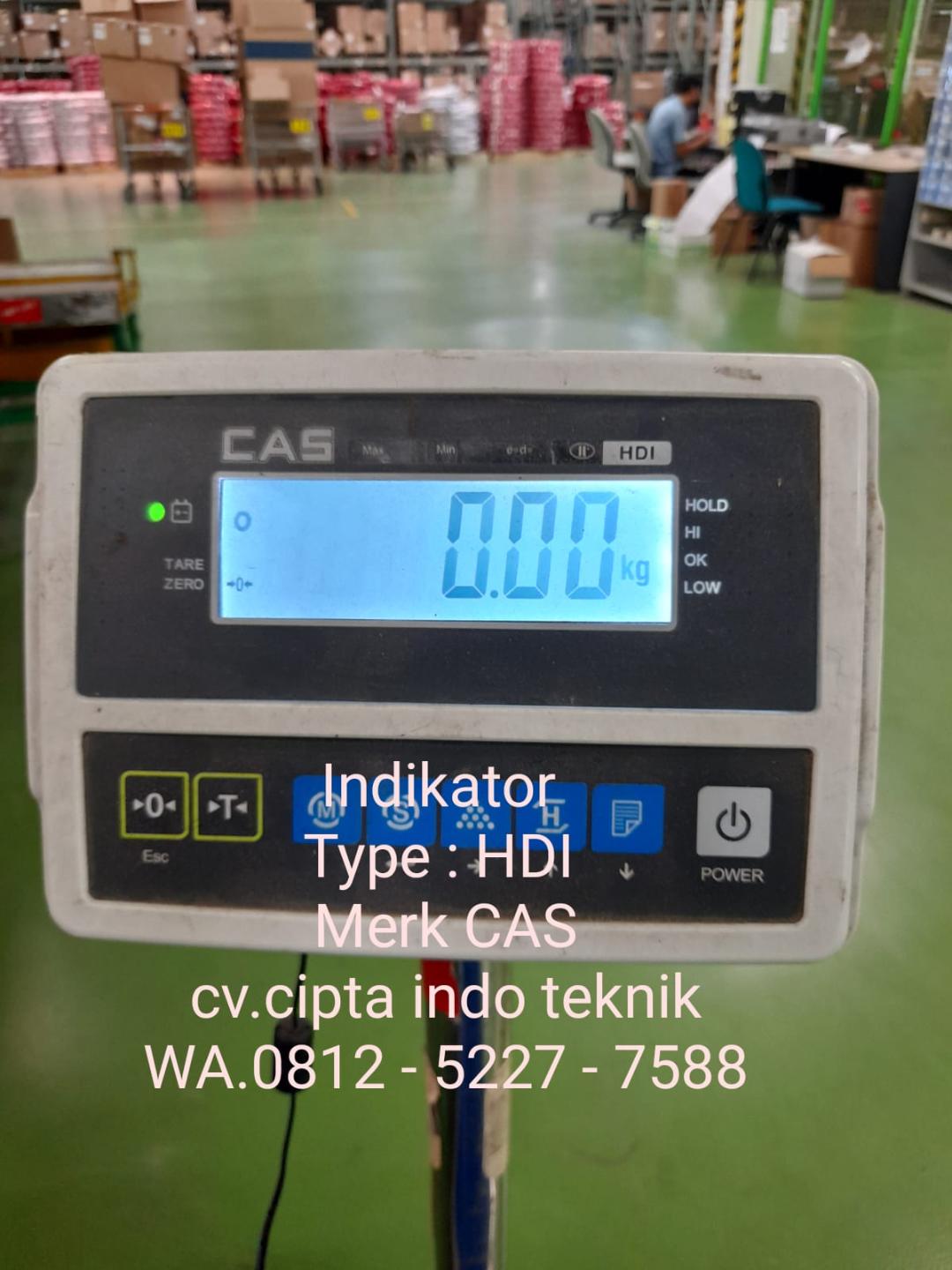

INDIKATOR TIMBANGAN TYPE HDI
DDI is connectable with various sizes of weighing platform scales for versatile applications such as open markets and retail stores. It offers the highest efficiency and convenience in a business via various functions and dual display.
- Large dual LCD display with backlight
- Rechargeable battery
- Ticket print-out (DEP-50)
FEATURES
- Economic suitable for one load cell platform
- Compact design & easy-to-use
- Large dual LCD display with backlight
- Rechargeable battery operated
- Wide application functions for bench & platform scales
- Weight comparison: HI / LOW / OK
- Counting & percentage mode
- Auto power off function
- Auto BL off function
- RS-232C interface
SPECIFICATIONS
| Model | DDI |
| Load cell excitation | DC 5V |
| Operating temperature | -10°C~40°C |
| Zero adjustment range | 0.05mV~ 5mV |
| Input sensitivity | 2.0µV /D |
| A/D internal resolution | 1/60,000 |
| A/D external resolution | 1/3,000 |
| Division | x1, x2, x5 |
| Display below zero | Minus |
| Display | LCD 25mm 6digits |
| Power | DC 12V 1.25A adaptor/6V 5Ah Pb batteryDry battery AA size x 4 |
| Interface | RS-232C(Printer) |
| Battery operation time | Approx. 150 hours (Backlight Off)Approx. 14 hours (Backlight On) |
| Dimensions(mm) | 220[W] x 159[D] x 107[H] |
| Product weight (kg) | Approx. 1.5 |
