MKCells MK-3510
| Specifications | |||
| Rated Capacities (Emax) | 1, 1.2, 2, 2.5, 3, 5t | Temperature, Compensated | -10°C ~ +40°C |
| Rated Output | 3.0 ± 0.003mV/V | Temperature, Operating | -30°C ~ +70°C |
| Total Error | ± 0.05% FS | Maximum Safe Overload | 150% FS |
| Creep Error (30 min) | ± 0.02% FS, ± 0.03% FS | Ultimate Overload | 200% FS |
| Zero Balance | ± 1% FS | Excitation, Recommended | 10 ~ 12V DC |
| TC Zero | ± 0.02% FS/10°C | Excitation, Maximum | 15V DC |
| TC Span | ± 0.02% FS/10°C | Protection Class | IP68 |
| Input Resistance | 400 ± 20W | Contruction | Nickel plated steel |
| Output Resistance | 352 ± 3W | Cable | Length : 5m |
| Insulation Resistance | ≥ 5000MW | Diameter : Φ 6mm | |
| Features | |

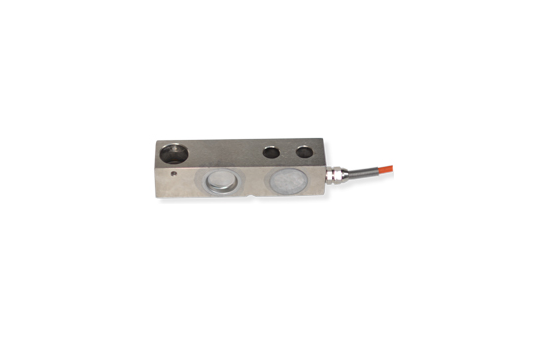

| High quality shear beam load cell | Nickel plated steel with anti corrosive |
| Wider mounting foot for special application | Can use for forklift, pallet, low platform scale |
| 5 core high quality orange cable | |
