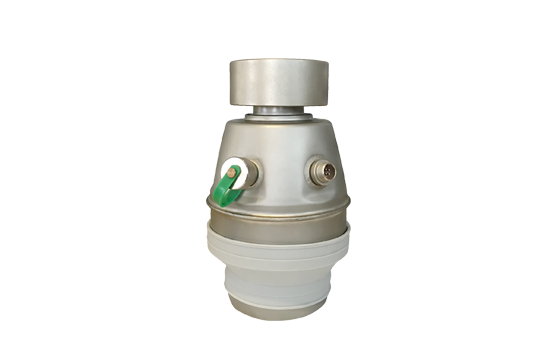

LOADCELL MK CELL TYPE MK – PDX
FEATURE
- High accuracy
- No junction box installation
- Water proof and lightening protection
- Upper and lower inhibitors design, Easy installation
- Radio frequency interference
- Dynamic response, and super capacity for anti-overload
- High quality stainless steel construction
- Hermetically sealed IP69K protection class
- PVC anti rat cable protection, high temperature
- Quick connection cable
- Truck scale, hopper scale, and tank weighing application
- Compatible for all MK Digital indicator
SPECIFICATIONS
| Rated load | 30,50t | Insulation resistance | ≥2000MΩ |
| Rated Output | 30000,50000 | Nominal Temp Range | -10°C~+40°C |
| Digital Refurbishing Frequency | 15 | Service Temp Range | -30~+70°C |
| Communication BPS | 9600BPS/19200BPS | Safe load limit | 150%F.S |
| Combined Error | ±0.02%F.S | Breaking load | 300%F.S |
| Creep (30 min) | ±0.02%F.S | Protection Class | IP69K |
| TC ZERO | ±0.02%F.S/10°C | Recommended Excitation | 9~12VDC |
| TC SPAN | ±0.02%F.S/10°C | Maximum Excitation | 20VDC |
| Material | Stainless Steel |
Brand : MKcells Kategori : Digital Load Cell
