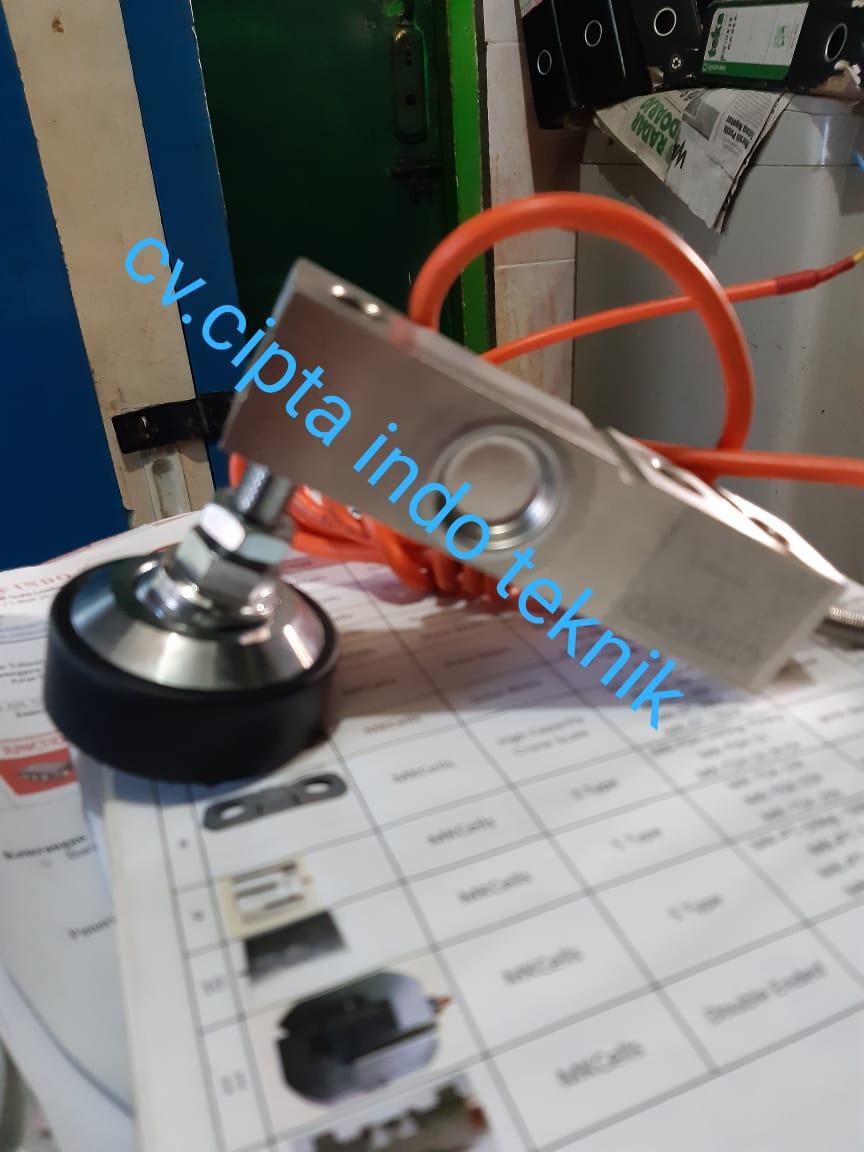

LOAD CELL MK SLB – MK CELLS 2 Ton
FEATURE
- High accuracy
- High quality shear beam load cell
- Nickel plated steel with anti corrosive
- Standard leveling foot for universal application
- Can use for forklift, pallet, silo, hopper, low platform scale
- Compatible with all MK Digital Indicator

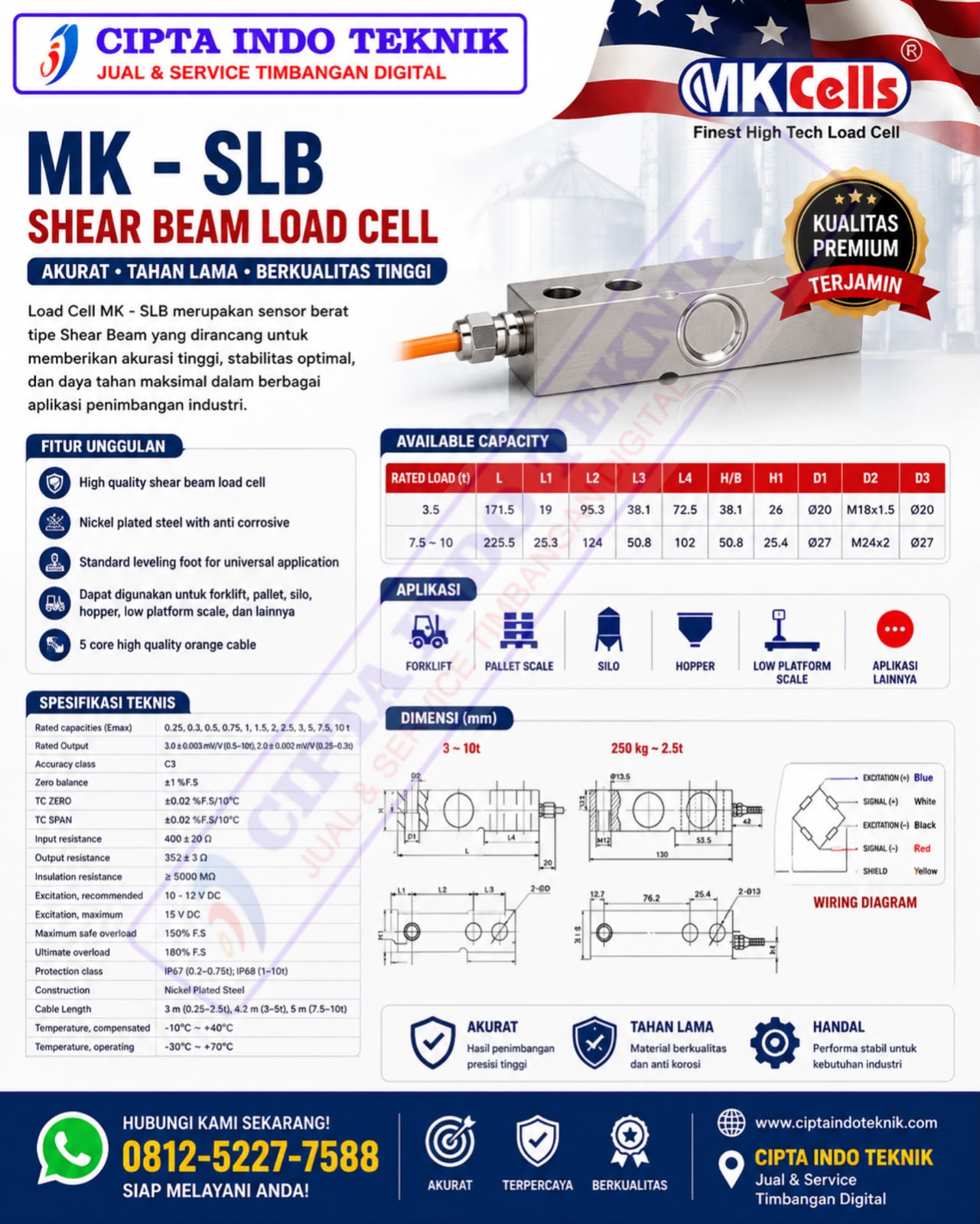

SPECIFICATIONS
| Rated capacities (Emax) | 0.25, 0.5, 1, 2, 3,5,10t | Temperature, operating | -30°C~+70°C |
| Rated output | 250, 500, 1000, 2000, 3000, 5000, 10000 | Maximum safe overload | 150%F.S |
| Combine error | ±0.02% F.S | Ultimate overload | 180%F.S |
| Zero balance | ±0.1%F.S | Excitation, recommended | 10-12V DC |
| Creep (30 min) | ±0.02%F.S/10°C | Excitation, maximum | 20 VDC |
| TC SPAN | ±0.02%F.S/10°C | Protection class | IP68 |
| Communication Baud rate | 9600 Bps | Construction | Nickel Plated Steel |
| Data refresh frequency | 50 Hz | Cable Length | 3m(0.25-2t),4.2m(3-5t),5m(10t) |
| Temperature, compensated | -10°C~+40°C | Diameter | Φ5mm |
Brand : MKcells Kategori : Digital Load Cell
