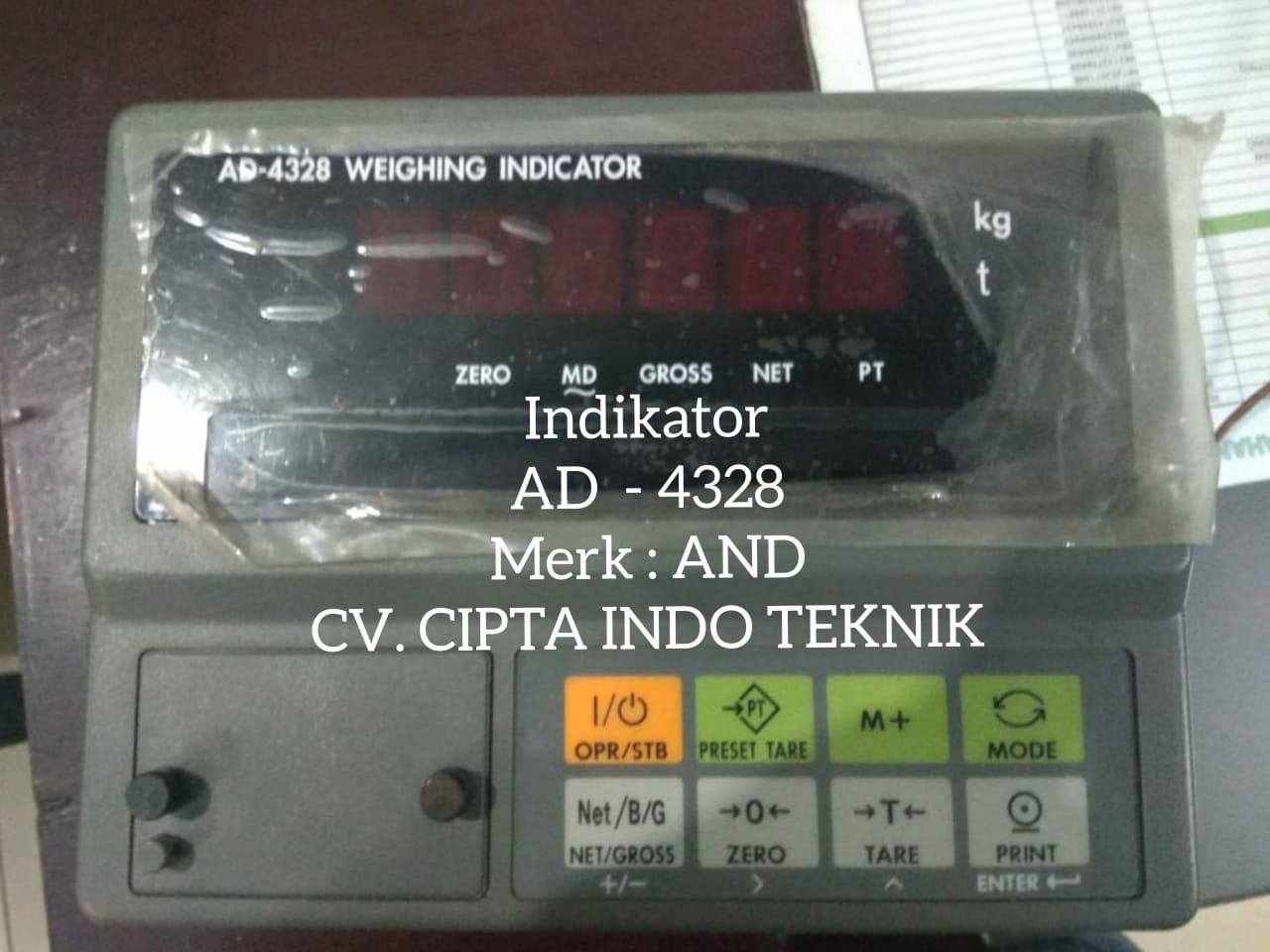

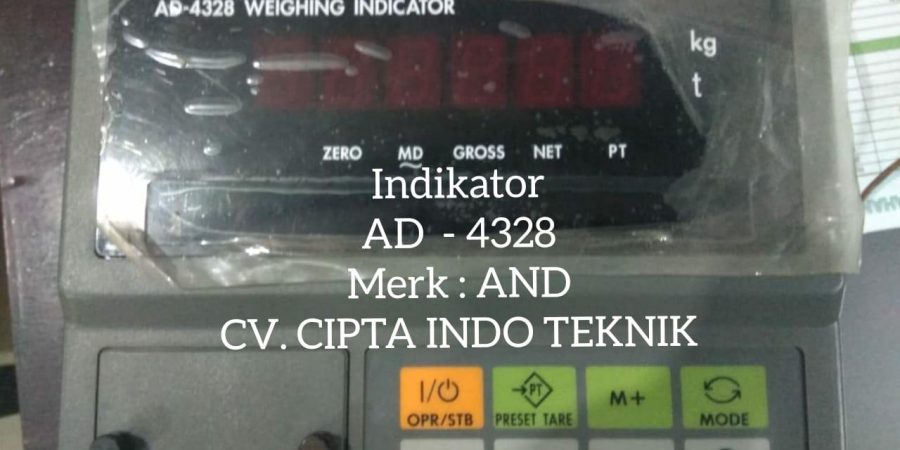

INDIKATOR AD – 4328 MERK AND
Features
- 1/10,000 display resolution
- Full Digital Calibration (FDC)
- Large (14.2mm high), bright red LED display digits
- Desktop or panel mount display placement (Optional column or wall mounting)
- Selectable units of measure:
International version: kg or t
2. U.S. version: lb or kg - A/D conversion rate of approx. 10 times / second
- Easily selectable minimum divisions: 1, 2, 5, 10, 20, or 50
- RFI / EMI protection
- External control capability using up to 3 input signals: Select from Zero, Tare, Mode, Net / Gross, print or M+
- HI / GO / LO comparator function
- Weighing-in comparator function using 4 set points: Target, Free fall, Preliminary & near Zero
- Three relay outputs: Allows semi automated control by automatic activation of valves & gates and status lights & alarms
- Flexible power sourcing:
Nominal DC9V (DC6V to 12V)
2. AC adapter input jack or input terminal
Options
- OP-01 Parallel BCD output (open collector transistor)
- OP-02 Output (open collector transistor)
- OP-03 RS-422/485 with Comparator Relay Output
- OP-04 Serial RS-232C / Current Loop / Comparator Relay Output
