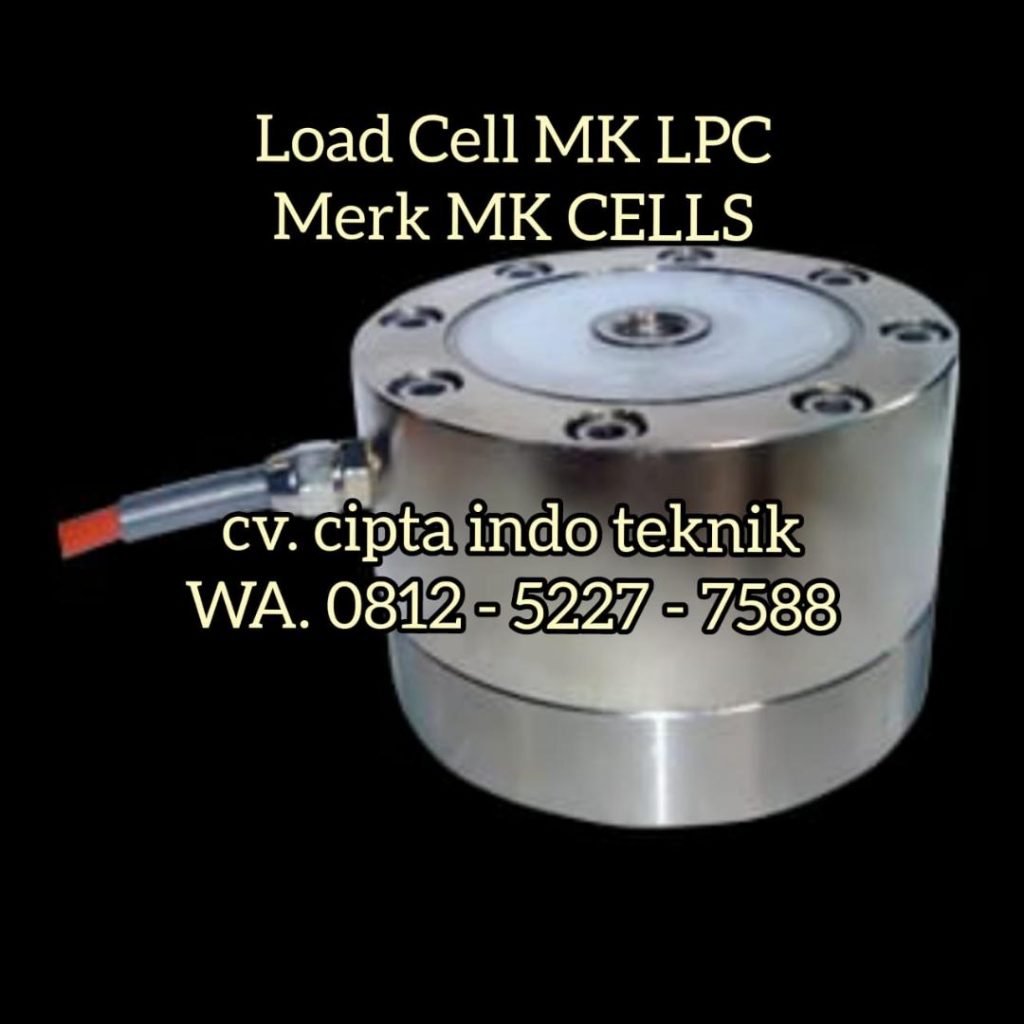

LOAD CELL MK – LPC MERK MK – CELLS
SPECIFICATIONS |
|||
| Rated Capacities (Emax) | 1, 2, 3, 5, 10, 20t | Temperature, Compensated | -10°C ~ + 40°C |
| Rated Output | 2.0 ± 0.006mV/V | Temperature, Operating | -30°C ~ +70°C |
| Total Error | ± 0.05% FS(2, 3, 5t)± 0.1% FS(10, 20t) | Maximum Safe Overload | 150% FS |
| Creep Error (30 min) | ± 0.03% FS | Ultimate Overload | 200% FS |
| Zero Balance | ± 1% FS | Excitation, Recommended | 10 ~ 12V DC |
| TC Zero | ± 0.02% FS/10°C | Excitation, Maximum | 15V DC |
| TC Span | ± 0.02% FS/10°C | Protection Class | IP67 |
| Input Resistance | 400 ± 20W | Construction | Alloy steel |
| Output Resistance | 352 ± 3W | Cable | Length : 12m |
| Insulation Resistance | > 5000MW | Diameter : 6mm | |
FEATURES |
|
| Dual function compression and tension installation | Universal low profile load cell |
| Adjustable height dimension | High accuracy |
| 5 core high quality orange cable | Can use for testing machine, crane, mining, hopper, tank, axle, etc |
