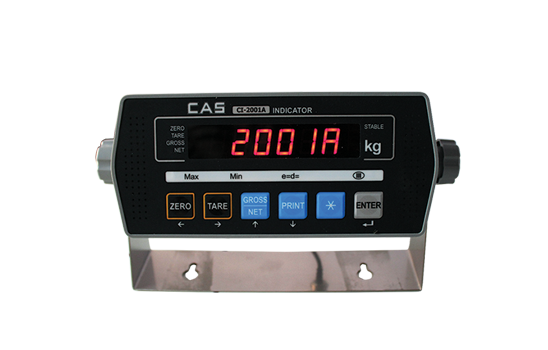

INDIKATOR TIMBANGAN TYPE CI – 2001 A
FEATURES
- Wall-mounted/small indicator
- Using Adaptor
- Automatic weight set-up
- RFI/EMI screened
- Watch-Dog circuitry (System restoration)
- Weight Back-Up (Saving of weight at sudden power failure)
- RS-232C interface
- Display: CI-2001A (LED), CI-2001B (LCD)
APPLICATION
- Measuring instrument tester, Platform scale
OPTIONS
- RS-442/485 interface
SPECIFICATIONS
| Model Name | CI-2001A |
| Load Cell applied voltage | DC 5V (Can connect 4 L/C) |
| Non-linearity | 0.01% F.S. |
| A/ D Internal Degradability | 1/130,000 |
| A/ D External Degradability | 1/10,000(Max.) |
| A/ D Conversion Speed | 10 times/sec |
| Weight Display Unit | 6 digit LED/LCD |
| Font Size (Height) | 13mm |
| Power used | AC 110V/220V(DC 12V, 850mA) |
| External dimension (mm) | 186(W)x58(D)x85(H) |
| Product Weight | 0.5kg |
